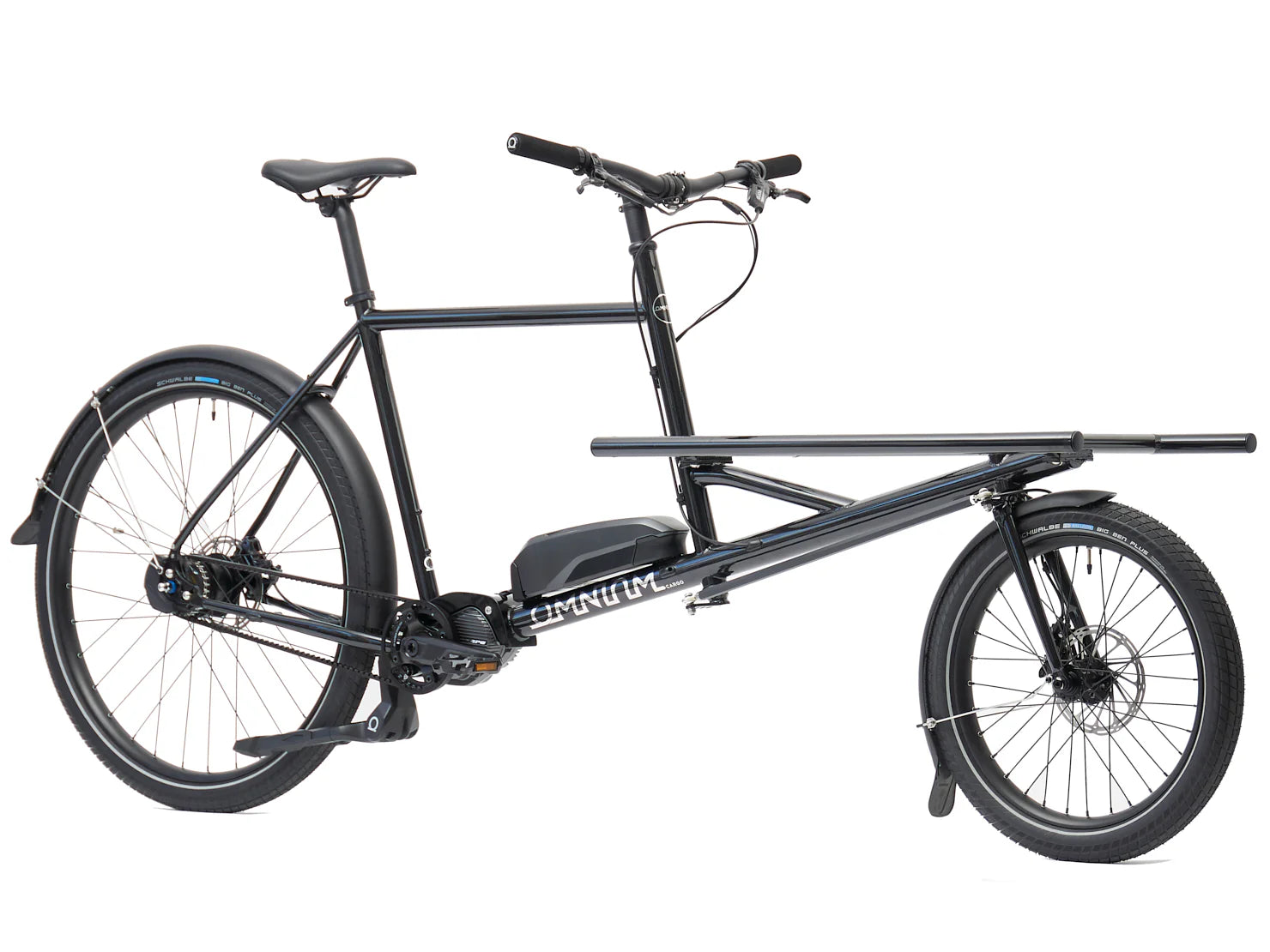

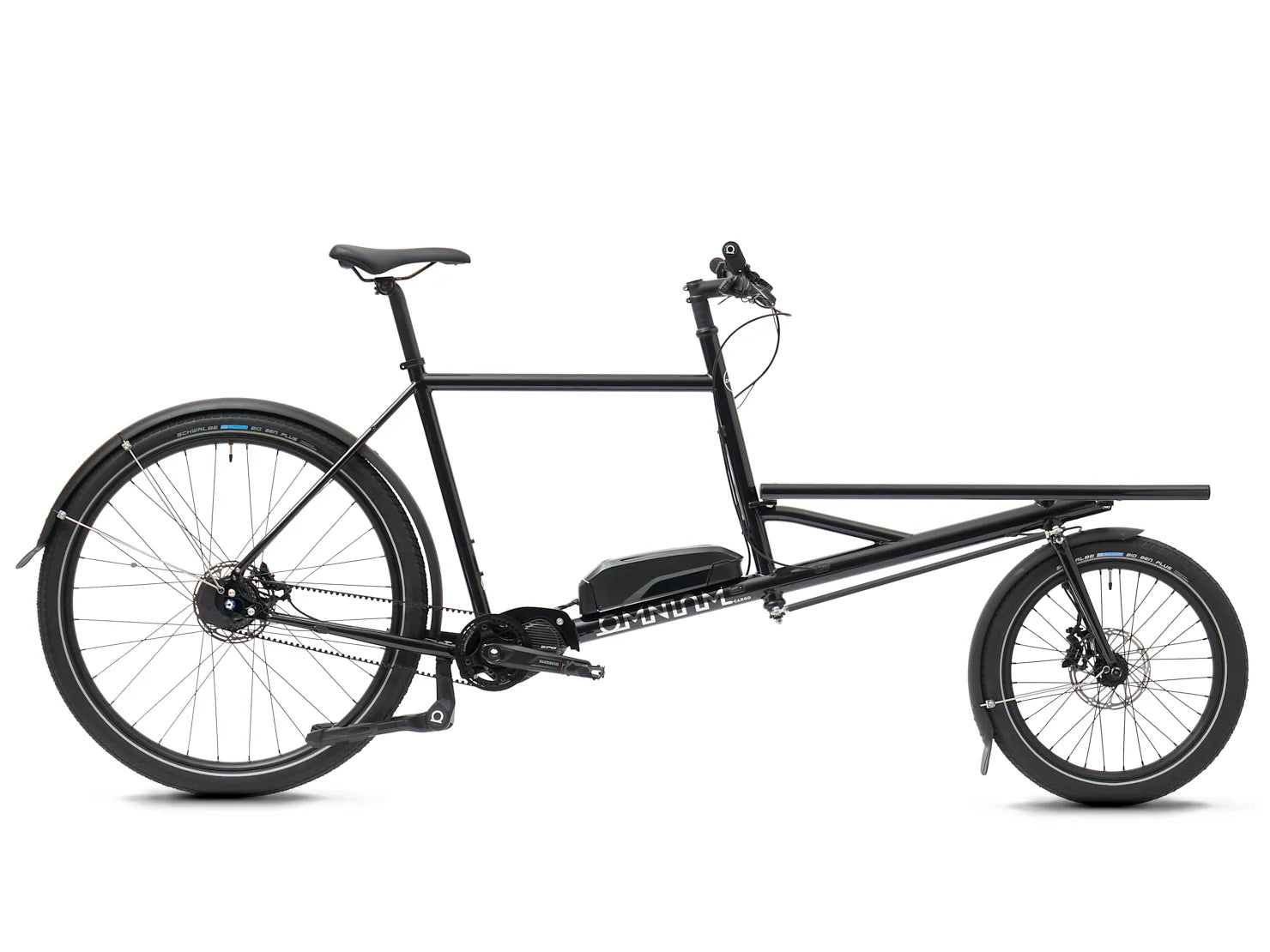

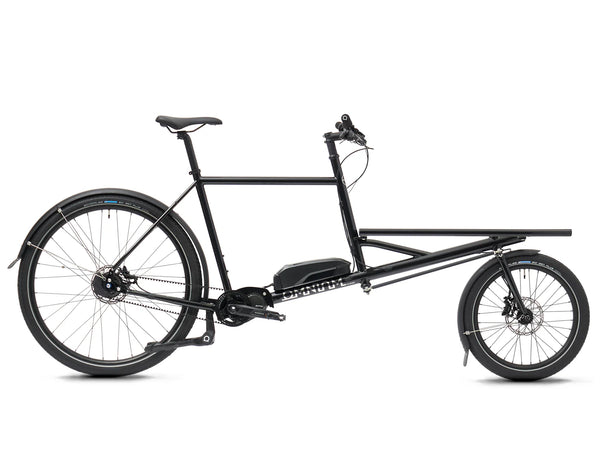

The Cargo is an incredibly versatile, lightweight and fast cargo bike that can handle heavy loads and big objects with ease.
The best part is, it rides like a normal bike when unloaded, due to it‘s clever construction and familiar geometry.
The Cargo is also the model with the long-est wheelbase, which calls for very stable handling. The wheelbase also allows for great stability when loading the rack on your own, as the weight is positioned in the middle of the front wheel and the kickstand.
Need to pick up your new dream sofa? Easy. Bringing your kid to the daycare before work? No problem! Bring a computer for work or a change of clothes for the gym in a waterproof duffle and you‘re good to go, rain or shine, all year long.
Size Guide
Height: 155 – 165cm | We recommend: size X-Small
Height: 165 – 175cm | We recommend: size Small
Height: 175 – 185cm | We recommend: size Medium
Height: 185 – 195cm | We recommend: size Large
Height: 195 – 205cm | We recommend: size X-Large
EP801 Drivetrain
-
- Shimano EP801 Cargo Motor
- 504Wh Battery
- Nexus 5 Di2 gear hub + Gates Beltdrive
- or CUES Di2 10s external drivetrain
Frame Specifications
| Frame material | Double-Butted Chromoly Steel Frame |
| 5 Sizes | XS, S, M, L, XL |
| Seat post diameter | 31.6mm |
| Seat post clamp size | 34.0mm |
| Rear wheel | 622, 12 x 142mm spacing, disc only |
| Front wheel | 406, 15 x 100mm spacing, disc only |
| Tyre clearance, front | 55mm with mudguards |
| Tyre clearance, rear | 55mm with mudguards |
| Thru Axle Front | 15×100, 125mm long, 17mm thread length, 1.5mm pitch |
| Fork headset | 1 1/8″ Threaded Integrated with locking cap |
| Steerer headset | 1 1/8″ Ahead |
| Rack dimensions | 83cm x 50cm, made of Aluminium |
| Standard rack weight | 1320g +/- |
| Rack bolt size | M8 x 15mm |
| Recommended maximum loading weight including rider | 175kg |
| Complete Bike Weight (including Webbing) | 28kg +/- |
